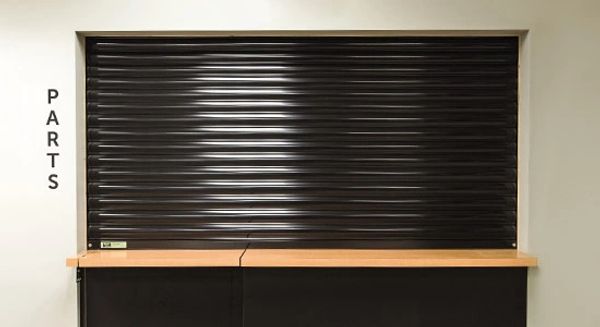

Security Shutter Doors

---

An attractive security shutter for areas where aesthetics is a valued premium along with visibility and airflow. This shutter has a compact design and comes pre-assembled for easy installation in areas with low headroom and side room requirements. The shutter doors provides security against forced entry or theft with slide bolts or cylinder locks available on manual or crank operation while fitting in with the aesthetics of the facility.

Pharmacies   |   Hospitals    |   Airports    |    Counters    |    Offices    |    Schools    |    Concessions    |    Sports Facilities    |    Retail Facilities  |    All Counter Top Applications

Max. Width:     *20'

Max. Height:    *14'

Slat Style:         Solid

Mounting:         Face-of-wall or between jambs

Operation:        Manual Push-up

Material:            Aluminum

Curtain:              Interlocking extruded aluminum slats constructed of .05" aluminum

Counter balance: Steel barrel; housing spring assembly

Guides:                Extruded aluminum channels with continuous wear strips

Hood:                   Aluminum square hood

Brackets:            Steel plates

Bottom Bar:      Compact aluminum with vinyl bulb seal

Installer Friendly

• Designed to be compact, the headroom and side room requirements are minimal and the pre-assembled door allows for easy installation
• Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation

Attractive Design

• Its compact design allows for a 14’ high door to wrap into a 10” square hood
• Stylish design by powder coating over anodizing includes more consistent coloring, easily matched replacement parts, and shorter lead times

• 24-Months Limited Warranty on all product parts and components

• Interior crank
• Tube motor with crank for emergency egress manual override

• Cylinder lock (if motor operated requires interlock microswitches)
• Pad-lockable slide bolts (padlock not included)
• Interlock microswitch

• Bottom bar step angle attachment

• Slat Styles
• Standard Slat
• Perforated - Perforation pattern - Offers 22% open area
• Fenestrated - 1" x 1" fenestrations with uniform spacing - Offers 24% open area
