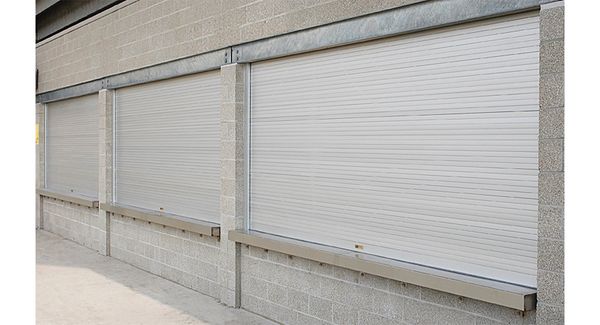

Rolling Counter Doors

---

Rolling Counter Shutter provides the perfect solution for smaller openings that require visually appealing access control. This shutter is designed to be utilized in those applications that incorporate countertops or openings that require the shutter to rest on a sill. With several different modes of operation including lift-up, crank, and motor, our counter shutter is the preferred solution for your application. Get exceptional security while getting the aesthetic you desire.

Concession Stand   |   Accounts Payable Window    |   Sports Arena    |    School Food Service    |    Ticket Booth    |    Cafeteria

Max Width*              20’

Max Height*              8'

Max Steel Gauge:   22

Mounting:                 Face mount, between jambs

Operation:               Manual Push-up

Curtain:                     2” galvanized steel flat slats or 22-gauge steel with alternating endlocks

Counterbalance:  Steel pipe, of adequate size to restrict a maximum deflection of .033” per linear foot; oil                             tempered torsion type

Guides:                      Extruded aluminum clear anodized with continuous wool pile strips

Hood:                        24-gauge galvanized steel square hood

Brackets:                 Steel plates

Locking:                   Concealed slide bolts on both sides

High Quality Construction

• The high quality, interlocking slats on the rolling counter shutter are available in galvanized steel, stainless steel or aluminum for long-lasting durability
• The box type guides are designed to reduce operational noise as well as to conceal the fasteners used to attach the shutter to the jamb resulting in quieter operation and greater visual appeal
• A square hood cover encloses the curtain coil and counterbalance mechanism giving a clean, professional appearance
• Oil-tempered, torsion-type counterbalance springs are wound from steel, providing accuracy in balancing the door

• 24-Months Limited Warranty on all product parts and components

• Manual Lift
• Crank
• Motor
• Operator controls
•


Locking Options

• Slide bolts
• Thumb turn cylinder (interlock potion on motorized doors)

Bottom Bar Options

• Single angle galvanized steel bottom bar fitted with a continuous vinyl bumper to protect countertop

• Counter Cutouts

Mullion Systems

Facia

Slat Profiles

• No. 17
• Secure-Vent®
• Extruded Aluminum Flat

Slat Options

• steel
• stainless steel
• extruded aluminum
• perforation (steel or stainless steel only)

Slat Finishes

• Stainless Steel #4
• Aluminum Anodized Finish

Bottom Bar Finish Options

• Extruded aluminum
• Tubular
• Sensing edge: electric or pneumatic

Hood/Bracket Finish Options

• Stainless steel
• Aluminum
