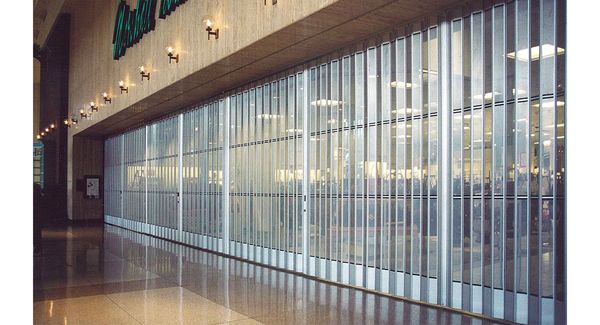

Rolling Grill & Accordion Doors

---

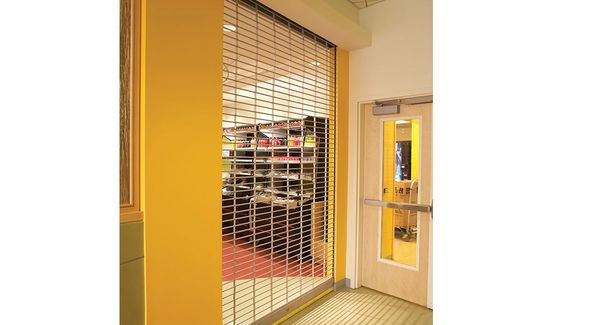

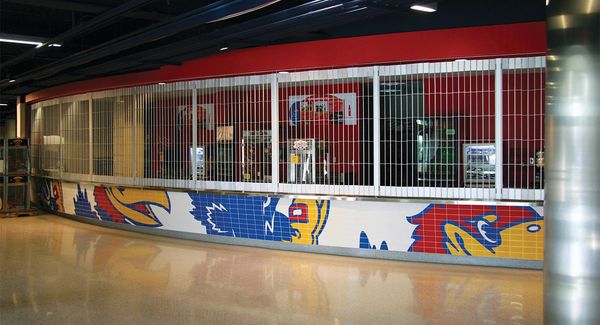

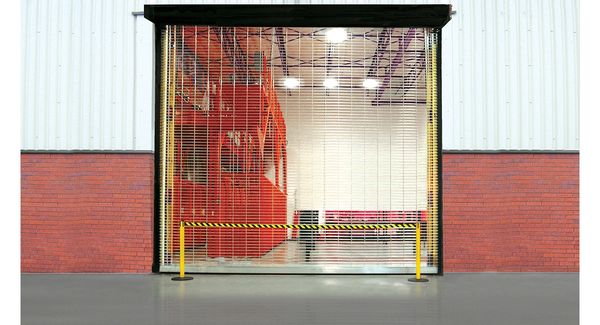

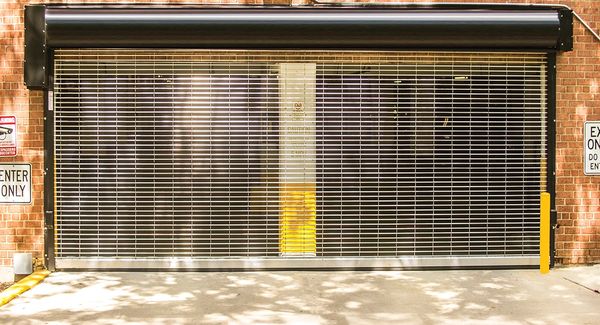

Rolling Grille offers security, visibility, and ventilation in several patterns and finishes. Rolling Grills provide security against entry or theft with slide bolts or pad lockable chains while the design allows visual access through the door opening space. This rolling grille also offers an emergency egress option as an additional security feature. Model 600 is constructed with vertical aluminum links and horizontal steel rods with spacer tubes and end links that ensure that the grille cannot be pulled from guides. The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.

Retail   |   Parking Garage    |   Schools    |    Hospitals    |    Office buildings    |    Airports    |    Banks    |    Pharmacies

Max Width*              42’ grille and unlimited on accordion

Max Height*             20'

Spring Cycle:           Solid

Mounting:                 Face mount, between jambs

Operation:               Manual Push-up

Curtain:                     Interlocking extruded aluminum slats constructed of .05" aluminum

Bottom Bar:            Steel barrel; housing spring assembly

Guides:                      Extruded aluminum channels with continuous wear strips

Brackets:                  Aluminum square hood

Barrel:                        Steel plates

Grille Pattern:         Compact aluminum with vinyl bulb seal

High-Quality Construction

• The bottom bar is a tubular aluminum extrusion, providing stability and strength
• Extruded aluminum guides provide vertical alignment and strength
• The wool pile inserts provide smooth and quiet operation

Safety Focused

• Provides ventilation to aid in preventing any excess build-up of fumes or gases


• 12-Months Limited Warranty against defects in materials and workmanship

• Awning crank
• Wall crank
• Chain hoist
• Motor
• Motor with chain

Drop Stop Device

Locking Options

• Cylinder lock
• Best lock
• Slide bolts
• Thumb turns
• E-Z LOK (EES only)

Bottom Edge Options

• Astragal
• Pneumatic
• Electric sensing edge

EES Emergency Egress

• The Wayne Dalton emergency egress grille provides secure access to public areas yet will automatically open fully upon detection of an alarm or power failure. This prevents entrapment in the event of an emergency and allows immediate access to emergency personnel. (Available on motor-operated doors)

• High Cycle Springs
• Super-imposed combination doors
• Curb cut out bottom bars
• Combination door mounts
• Sloped bottom bars

  Guides/Brackets/Barrel/Bottom Bar/Guides Finish

• Black Primed
• Painted steel (Beige, White or Gray)

Acrylic Lites

Hood Options

• Square hood and brackets
• 24-gauge galvanized steel
• Stainless steel
• 20-gauge B&S aluminum

Guide Options

• UHMW wear strips

Steel mountain tubes

End covers
