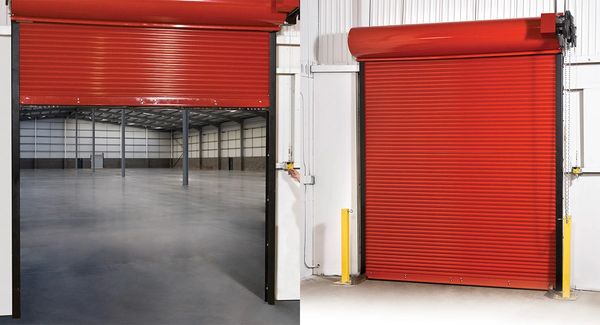

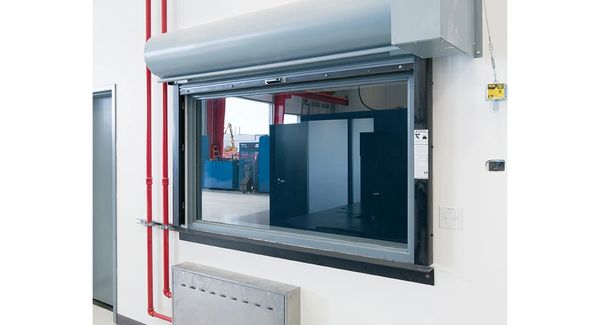

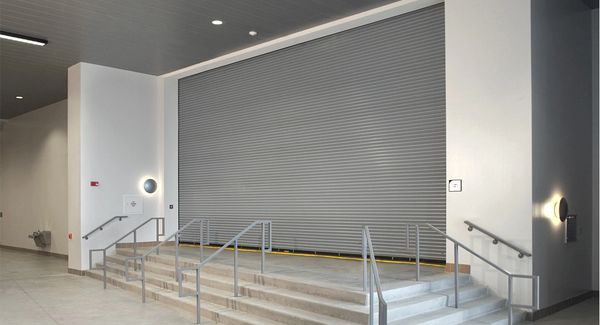

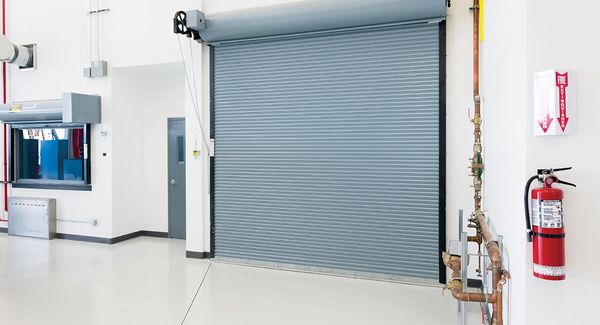

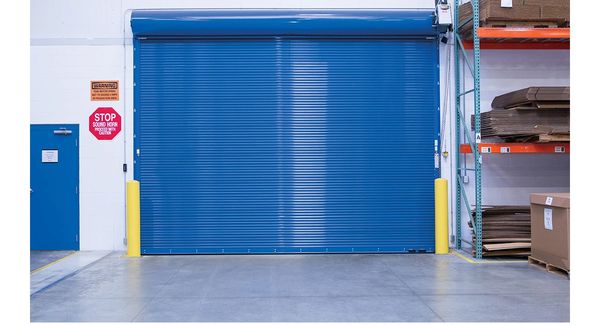

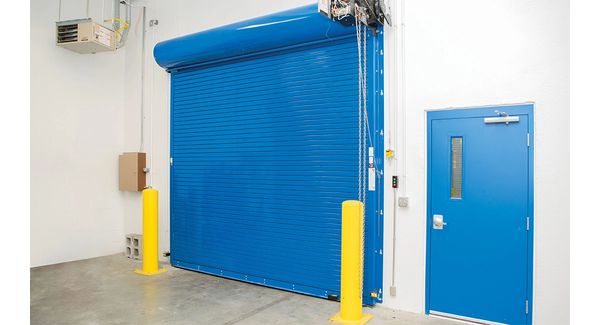

Fire Rated Rolling Service Doors

---

The fire-rated doors provide a practical and innovative solution to safety and fire protection for high traffic areas. Rolling Steel Fire Doors can be drop-tested and reset at any time by anyone, thanks to a standard auto-reset feature. There is an option for insulated rolling steel fire door with a non-combustible mineral wool insulation that has a flame spread and smoke development of 0, further aiding in the protection of the building. Both fire-rated doors feature a forward-thinking design that outperforms industry standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.

Distribution Centers   |   Food Service Areas    |   Stadium Concessions    |    Service Stations    |    Storage Areas    |    Warehouses    |    Manufacturing    |    Trucking Distribution Center

Max Width*              24’

Max Height*            24'

Max. Sq. Footage: 324 sq. ft.

Material: Galvanized or Stainless Steel Galvanized or Stainless Steel

Curtain Material 3" insulated galvanized steel flat slats (#34 profile) 22-gauge steel front / 24-gauge steel backer Inter locking roll-formed slats with alternate slats fitted with metal end-locks/ wind-locks

Max Steel Gauge: 22 18

Operation: Chain hoist or Motor Lift-up Mounting Face mount angle-in or angle-out; between jambs Structural steel, drywall over wood stud jamb, drywall over 16-gauge steel stud jamb

Counter Balance: Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle

Hood: 24-gauge galvanized steel /stainless steel round

Bottom Bar: Galvanized steel double angle with weatherstrip and insulation Two equal angles
Thickness- 0.121" min to stiffen curtain

Brackets: 3/16" or 1/4" steel plates with sealed ball bearings, painted factory black painted factory black

Release Mechanism

Slat Profiles

R-value* (optional)5.0

Wind Load (optional)Yes

High-Quality Construction

• Planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance
• Lift up operation control device utilizing a clutch plate and unique counterbalance technology to drop the door in the event of a fire
• UL/ULC/FM rated; Conforms to NFPA Standard 80
  • Up to 4-hour and 3-hour Class A label in UL, ULC
  • Regulates the installation and maintenance of assemblies and devices used to protect openings in walls, floors, and ceilings against the spread of fire and smoke
• Tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual

Reliable Design

• Factory-tested and approved for a minimum of 20,000 cycles, the  door can be used and easily tested on a regular basis without concerns of premature failure
• Non-Tension Release provides the ease of simply opening the door to reset the drop mechanism after ‘an event’

Field Repairable

• Floor resettable features an easy drop test with a fast/simple reset in a matter of seconds
• By incorporating one standardized component design, this ensures more accurate installations and reduces the possibility of potential service calls in the future

• 24-Months Limited Warranty on all product parts and components

• Manual Crank
• Motor operation
• Chain hoist

Signal Device Options

• Fire Release Device
• Horns and Strobes
• Smoke Detectors

Sensing Edge Options

• Electrical
• Pneumatic

Viscous Governor

Wind Lock Options

• Alternating or continuous with windbar

Florida Building Commission Impact Rating – Certified for Florida's High Velocity Hurricane Zone (Up to +/- 55 psf)

Vision Options

• Fire Lite*- 5" x 3/4"
• Fire Lite* fenestration with glass vision lite
• 6" curved slat

Curtain Gauge Options

• 20 or 18-gauge Steel front
• 22, 20, or 18-gauge Stainless steel front

Bottom Bar Options

• Stainless steel double angle
• Galvanized structural steel angle construction
• Sloped

Bottom Edge Options

• Astragal
• Pneumatic
• Electric sensing

Hood

• 22-gauge steel
• Square hood

Locking Options

• Slide bolts
• Cylinder
• Best lock
• Thumb turns

Perimeter Seal Options

• Angled guide brush seal
• Exterior lintel weather
• Flame baffle
• Smoke package
  • Full perimeter seal
  • Caulking
  • Label

End Covers

FM label

Fascia
